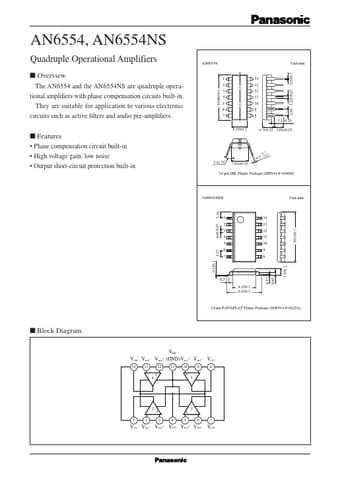

AN6554 Datasheet, Amplifiers, Panasonic Semiconductor

AN6554 Features

• Amplifiers
• Phase compensation circuit built-in
• High voltage gain, low noise
• Output short-circuit protection built-in 0.3
    – 3 to 15˚ 7.62±0.25 14-pi

PDF File Details

Part number:

AN6554

Manufacturer:

Panasonic Semiconductor

File Size:

52.15kb

Download:

📄 Datasheet

Description:

Quadruple operational amplifiers. Pin No. 1 2 3 4 5 6 7 Pin name Ch.1 output Ch.1 inverting input Ch.1 non inverting input VCC Ch.2 non inverting input Ch.2 inverting
