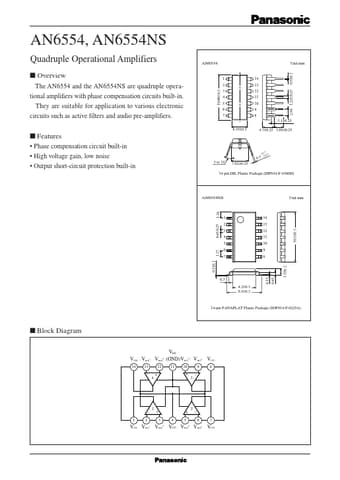

AN6554NS Datasheet (Panasonic Semiconductor) - Quadruple Operational Amplifiers

AN6554NS, Quadruple Operational Amplifiers

Pin No.

1 2 3 4 5 6 7 Pin name Ch.1 output Ch.1 inverting input Ch.1 non inverting input VCC Ch.2 non inverting input Ch.2 inverting input Ch.2 output Pin No.

8 9 10 11 12 13 14 Pin name Ch.3 output Ch.3 inverting input Ch.3 non inverting input VEE (GND) Ch.4 non inverting input Ch.4 inverting inpu

AN6554NS Features

* Phase compensation circuit built-in

* High voltage gain, low noise

* Output short-circuit protection built-in 0.3

* 3 to 15˚ 7.62±0.25 14-pin DIL Plastic Package (DIP014-P-0300D) AN6554NS 1.24 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1.5±0.2 10.1±0.3 0.1±0.1 1.27 0
