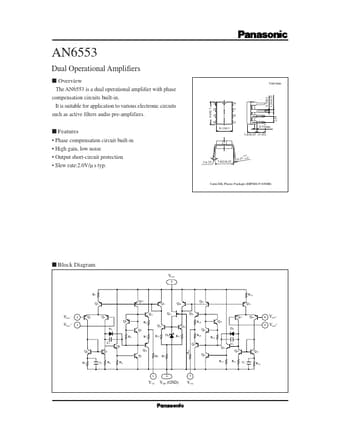

AN6553 Datasheet (Panasonic Semiconductor) - Dual Operational Amplifiers

AN6553, Dual Operational Amplifiers

Pin No.

1 2 3 4 5 6 7 8 Pin name Ch.1 output Ch.1 inverting input Ch.1 non inverting input VEE Ch.2 non inverting input Ch.2 inverting input Ch.2 output VCC * + * + s Characteristics Curve GV *f 120 VCC=15V VEE= *15V Ta=25˚C 30 VO (max.) *RL Equivalent Input

AN6553 Features

* Phase compensation circuit built-in

* High gain, low noise

* Output short-circuit protection

* Slew rate:2.0V/µ s typ. + 0.1 3 to 15˚ 7.62±0.25 0.15

* 0.05 8-pin DIL Plastic Package (DIP008-P-0300B) s Block Diagram VCC 8 R3 Q3 Q10 Q13 Q11 Q8 R6 Q14 D1
