AN6552S - Dual Operational Amplifiers

Panasonic Semiconductor

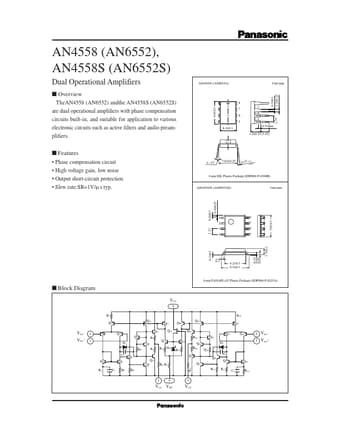

AN6552S Datasheet Preview — Preview of AN6552S PDF

Datasheet Details

Part number	AN6552S
Manufacturer	Panasonic ↗ Semiconductor
File Size	39.75 KB
Description	Dual Operational Amplifiers
Datasheet	AN6552S_PanasonicSemiconductor.pdf

AN6552S Product details

Description

Pin No. Pin name Ch.1 output Ch.1 inverting input Ch.1 non inverting input VEE (GND) Ch.2 non inverting input Ch.2 inverting input Ch.2 output VCC VCC VO2 Vin2 Vin2+ 1 2 3 4 5 6 7 8 + 6 5 + GV f 120 VO (max.) RL Maximum Output Voltage VO (max.) (V) VCC=15V VEE= 15V Ta=25˚C Vni f Equivalent Input Noise Voltage Vni (nV/Hz) 25 VCC=15V VEE= 15V 20 RS=1kΩ GV=40dB Ta=25˚C 30 100 26 Voltage Gain GV (dB) 80 22 60 15 18 40

Features

Phase compensation circuit.
High voltage gain, low noise.
Output short-circuit protection.
Slew rate:SR=1V/µ s typ. 3.
15˚ 7.62±0.25 8-pin DIL Plastic Package (DIP008-P-0300B) AN4558S (AN6552S) Unit:mm 0.6±0.3 0.4±0.25 1 2 3 4 8 7 6 5 5.0±0.3 0.15 0.65 6 5 1.27 0.1±0.1 0.3 4.2±0.3 6.5±0.3 8-pin.
