C3979 Datasheet - Panasonic Semiconductor

C3979, 2SC3979

Power Transistors 2SC3979, 2SC3979A Silicon NPN triple diffusion planar type 4.2±0.2 16.7±0.3 7.5±0.2 0.7±0.1 For high breakdown voltage high-speed.

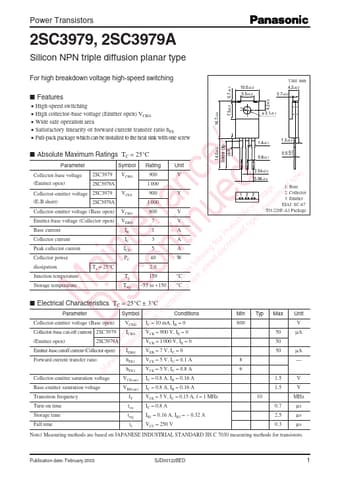

datasheet Preview Page 1 from Datasheet4u.com

C3979-PanasonicSemiconductor.pdf

C3979 Datasheet Preview — Preview of C3979 PDF

Datasheet Details

Part number:

C3979

Manufacturer:

Panasonic Semiconductor

File Size:

258.25 KB

Description:

2SC3979

Features

* 10.0±0.2 5.5±0.2 Unit: mm 4.2±0.2 2.7±0.2
* High-speed switching
* High collector-base voltage (Emitter open) VCBO φ 3.1±0.1
* Wide safe operation area
* Satisfactory linearity of forward current transfer ratio hFE
* Full-pack package which can be insta
