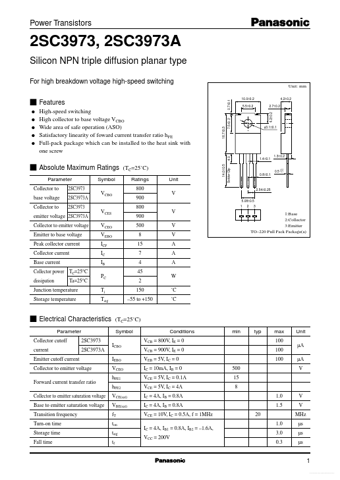

Preview of C3973 PDF

Datasheet Details

Part number:

C3973

Manufacturer:

Panasonic Semiconductor

File Size:

62.13 KB

Description:

2sc3973.
Power Transistors 2SC3973, 2SC3973A Silicon NPN triple diffusion planar type For high breakdown voltage high-speed switching 0.7±0.1 Unit: mm 10.0±0.

C3973 Features

* q q q q q High-speed switching High collector to base voltage VCBO Wide area of safe operation (ASO) Satisfactory linearity of foward current transfer ratio hFE Full-pack package which can be installed to the heat sink with one screw (TC=25˚C) Ratings 800 900 800 900 500 8 15 7 4 45 2 150
