C3972 Silicon NPN Transistor

C3972 Description

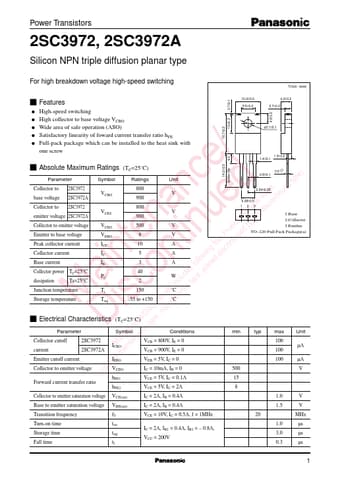

Power Transistors 2SC3972, 2SC3972A Silicon NPN triple diffusion planar type For high breakdown voltage high-speed switching Unit: mm s .

C3972 Features

* q High-speed switching 0.7±0.1 10.0±0.2 5.5±0.2 4.2±0.2 2.7±0.2 4.2±0.2 16.7±0.3 7.5±0.2 q High collector to base voltage VCBO q Wide area of safe operation (ASO) φ3.1±0.1 q Satisfactory linearity of foward current transfer ratio hFE q Full-pack package which can be installed to the heat si
