C3974 Silicon NPN Transistor

📥 Download Datasheet  Datasheet Preview Page 1

Description

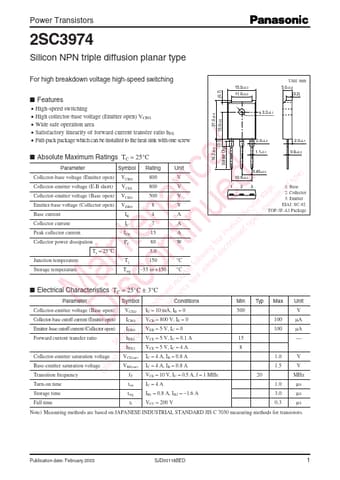

Power Transistors 2SC3974 Silicon NPN triple diffusion planar type For high breakdown voltage high-speed switching * .

📥 Download Datasheet

Preview of C3974 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
C3974
Manufacturer
Panasonic
File Size
257.83 KB
Datasheet
C3974-Panasonic.pdf
Description
Silicon NPN Transistor

Features

* (0.7) 15.0±0.3 11.0±0.2 Unit: mm 5.0±0.2 (3.2) 21.0±0.5 15.0±0.2
* High-speed switching
* High collector-base voltage (Emitter open) VCBO φ 3.2±0.1
* Wide safe operation area
* Satisfactory linearity of forward current transfer ratio hFE
* Full-pack pac
