LN282RPX - Round.Top View Type

📥 Download Datasheet

Datasheet preview – LN282RPX

Datasheet Details

Part number LN282RPX
Manufacturer Panasonic Semiconductor
File Size 32.36 KB
Description Round.Top View Type
Datasheet download datasheet LN282RPX Datasheet
Additional preview pages of the LN282RPX datasheet.

📁 Similar Datasheet

  • LN2844-15 - FOUR DIGIT DISPLAY (Ledtech)
  • LN2003 - 7 Segment Display (Sensitron)
  • LN2011 - Mono 1W Filterless Non-Clip class-D Audio Power Amplifier (natlinear)
  • LN2012 - Stereo 2.1W Non-Clip Audio Power Amplifiers (natlinear)
  • LN2046 - Low-Voltage I/O Touch Panel Controller (natlinear)
  • LN2051 - 1A is compatible with the USB interface / linear battery management chip (natlinear)
  • LN2052 - 1A Is Compatible With The USB Interface / Linear Battery Management Chip (natlinear)
  • LN2053 - 1A Is Compatible With The USB Interface / Linear Battery Management Chip (natlinear)
  • LN2054 - Standalone Linear Li-Ion Battery Charger (Natlinear)
  • LN2065 - Sensorless CC/CV Step-Down DC/DC Converter (natlinear)
Other Datasheets by Panasonic Semiconductor

Full PDF Text Transcription

Click to expand full text

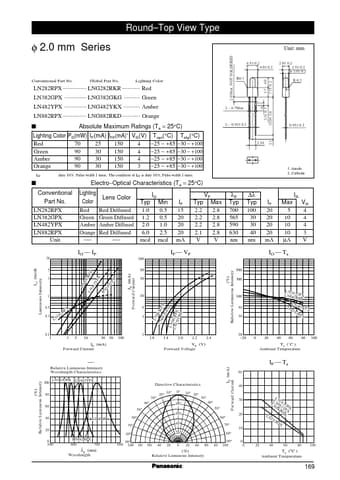

Round–Top View Type φ 2.0 mm Series 2.0 Max. NOT SOLDERED 4.5± 0.2 4.0± 0.2 Unit: mm 2.6± 0.2 2.5± 0.2 φ 2.0± 0.2 R 0.3 LN282RPX ················ LNG282RKR ············ Red LN382GPX ··············· LNG382GKG ··········· Green LN482YPX ··············· LNG482YKX ··········· Amber LN882RPX ················ LNG882RKD ············ Orange s Absolute Maximum Ratings (Ta = 25°C) IFP(mA)∗ 150 150 150 150 VR(V) 4 4 4 3 Topr(°C) −25 ∼ +85 −25 ∼ +85 −25 ∼ +85 −25 ∼ +85 Tstg(°C) −30 ∼ +100 −30 ∼ +100 −30 ∼ +100 −30 ∼ +100 2 − 0.45± 0.1 1.0 3.3± 0.3 32.0± 1.0 2 − 0.7Max 3.7 4.0 7.7± 0.2 Conventional Part No. Global Prat No. Lighting Color R0.3 0.45± 0.1 Lighting Color PD(mW) IF(mA) Red 70 25 Green 90 30 Amber 90 30 Orange 90 30 IFP 2.54 1 2 1.5 duty 10% Pulse width 1 msec.
