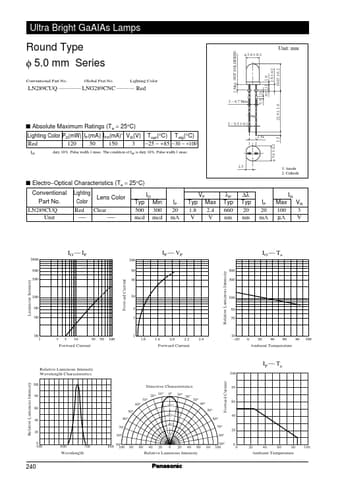

Ultra Bright GaAIAs Lamps
2 Max. NOT SOLDERED
Conventional Part No.
Global Prat No.
Lighting Color
LN289CUQ ··············· LNG289CNC ············ Red
2 − 0.7 Max
s Absolute Maximum Ratings (Ta = 25°C) Lighting Color PD(mW) IF(mA) IFP(mA)∗ VR(V) Topr(°C) Tstg(°C) Red 120 150 50 3 −25 ∼ +85 −30 ∼ +100
IFP duty 10% Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec
2 − 0.5 ± 0.1 2.54
2.5
φ 5.8 ± 0.2
1: Anode 2: Cathode
1
2
s Electro−Optical Characteristics (Ta = 25°C) Conventional Part No. LN289CUQ Unit Lighting Lens Color Color Red Clear − − IO Typ 500 mcd Min 300 mcd IF 20 mA Typ 1.8 V VF Max 2.
LN289CUQ Datasheet
