2PG001

N-channel enhancement mode IGBT

2PG001 Features

* Low collector-emitter saturation voltage: VCE(sat) < 2.5 V

* High speed hall time: tf = 250 nsec(typ.)

* Package

* Code TO-220F-A1

* Marking Symbol: 2PG001 Unit V V A A W W °C °C E G

* Absolute Maximum Ratings TC = 25°C Parameter Collector-emitter voltag

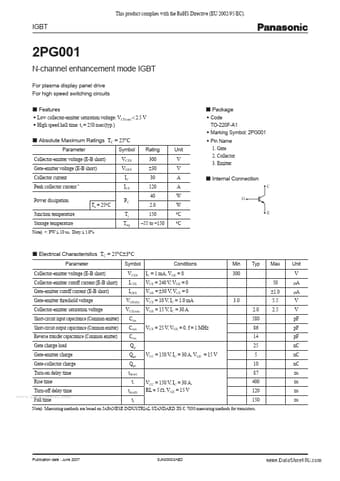

2PG001 Datasheet (283.24 KB)

Preview of 2PG001 PDF

Datasheet Details

Part number:

2PG001

Manufacturer:

Panasonic

File Size:

283.24 KB

Description:

N-channel enhancement mode igbt.
This product complies with the RoHS Directive (EU 2002/95/EC). IGBT 2PG001 N-channel enhancement mode IGBT For plasma display panel drive For high s.
