AQW210S - Photo MOS Relay

This page provides the datasheet information for the AQW210S, a member of the AQW212S Photo MOS Relay family.

Datasheet Summary

Features

  • 1. 2 channels in miniature SOP8-pin design The device comes in a super-miniature SO package measuring (W) 4.4 × (L) 9.37 × (H) 2.1 mm (W) .173× (L) .369× (H) .083 inch.
  • approx. 38% of the volume and 66% of the footprint size of DIP8-pin type. 2. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion. 3. Low-level off state leakage current of max. 1 μA.

📥 Download Datasheet

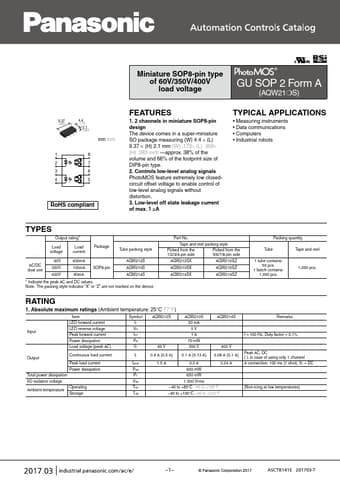

Datasheet preview – AQW210S

Datasheet Details

Part number AQW210S
Manufacturer Panasonic
File Size 142.23 KB
Description Photo MOS Relay
Datasheet download datasheet AQW210S Datasheet
Additional preview pages of the AQW210S datasheet.

📁 Similar Datasheet

  • AQW210S - HIGH VOLTAGE/ PHOTO MOS RELAY (Etc)
  • AQW210 - High Voltage Photo MOS Relays (Global Components)
  • AQW210A - High Voltage Photo MOS Relays (Global Components)
  • AQW210T2S - (AQW210TS / AQW210T2S) Photo MOS Relays (NAIS)
  • AQW210TS - HIGH VOLTAGE/ PHOTO MOS RELAY (Etc)
  • AQW210TS - (AQW210TS / AQW210T2S) Photo MOS Relays (NAIS)
  • AQW214 - High Voltage Photo MOS Relays (Global Components)
  • AQW214A - High Voltage Photo MOS Relays (Global Components)
  • AQW214S - HIGH VOLTAGE/ PHOTO MOS RELAY (Etc)
  • AQW227N - Photo MOS Relays (Aromat)
Other Datasheets by Panasonic

Full PDF Text Transcription

Click to expand full text
Miniature SOP8-pin type of 60V/350V/400V load voltage GU SOP 2 Form A (AQW21❍S) 9.37 .369 1 2 3 4 4.4 .173 2.1 .083 mm inch 8 7 6 5 RoHS compliant FEATURES 1. 2 channels in miniature SOP8-pin design The device comes in a super-miniature SO package measuring (W) 4.4 × (L) 9.37 × (H) 2.1 mm (W) .173× (L) .369× (H) .083 inch —approx. 38% of the volume and 66% of the footprint size of DIP8-pin type. 2. Controls low-level analog signals PhotoMOS feature extremely low closedcircuit offset voltage to enable control of low-level analog signals without distortion. 3. Low-level off state leakage current of max.
