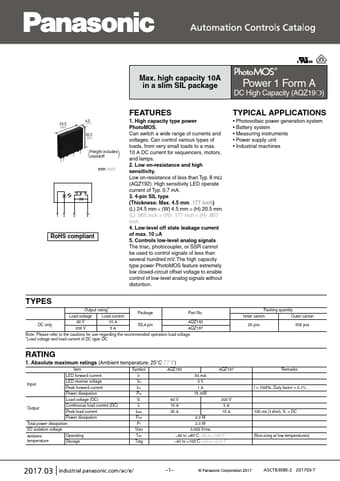

Max. high capacity 10A in a slim SIL package
Power 1 Form A
DC High Capacity (AQZ19❍)
24.5 .965
4.5 .177 20.5 .807
Height includes standoff
mm inch
12
3−
4+
RoHS compliant
FEATURES
1. High capacity type power PhotoMOS. Can switch a wide range of currents and voltages. Can control various types of loads, from very small loads to a max. 10 A DC current for sequencers, motors, and lamps. 2. Low on-resistance and high sensitivity. Low on-resistance of less than Typ. 8 mΩ (AQZ192). High sensitivity LED operate current of Typ. 0.7 mA. 3. 4-pin SIL type (Thickness: Max. 4.5 mm .177 inch) (L) 24.5 mm × (W) 4.5 mm × (H) 20.5 mm (L) .965 inch × (W) .177 inch × (H) .807 inch. 4. Low-level off state leakage current of max. 10 μA 5.
