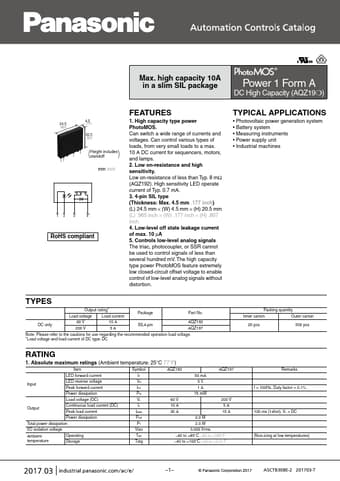

* 1. High capacity type power PhotoMOS. Can switch a wide range of currents and voltages. Can control various types of loads, from very small loads to a max. 10 A DC current for sequencers, motors, and lamps. 2. Low on-resistance and high sensitivity. Low on-resistance of less than Typ. 8 mΩ (AQZ192).
AQZ197
Panasonic
164.55 KB
Photomos relay.
Max. high capacity 10A in a slim SIL package
Power 1 Form A
DC High Capacity (AQZ19❍)
24.5 .965
4.5 .177 20.5 .807
Height includes standoff
mm i.
