C1359 - Silicon NPN Transistor

C1359 Description

Transistors 2SC1359 Silicon NPN epitaxial planar type For high-frequency amplification Complementary to 2SA0838 5.0±0.2 Unit: mm 4.0±0.2 5.1±0.2 .

C1359 Features

* Optimum for RF amplification of FM/AM radios
* High transition frequency fT 0.7±0.1
* Absolute Maximum Ratings Ta = 25°C 0.7±0.2 12.9±0.5 / Parameter Symbol Rating Unit e ) Collector-base voltage (Emitter open) VCBO 30 V c type Collector-emitter voltage (Base open)

📥 Download Datasheet

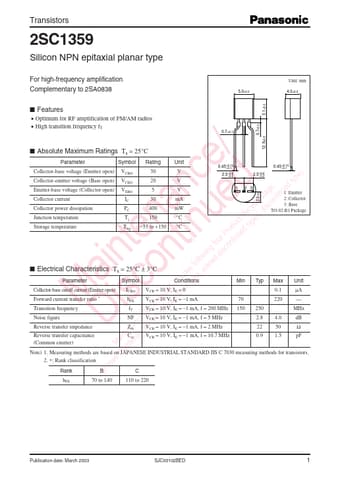

Preview of C1359 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C1359
Manufacturer
Panasonic
File Size
259.47 KB
Datasheet
C1359-Panasonic.pdf
Description
Silicon NPN Transistor
