DB2J407 - Silicon epitaxial planar type

Panasonic

📥 Download Datasheet

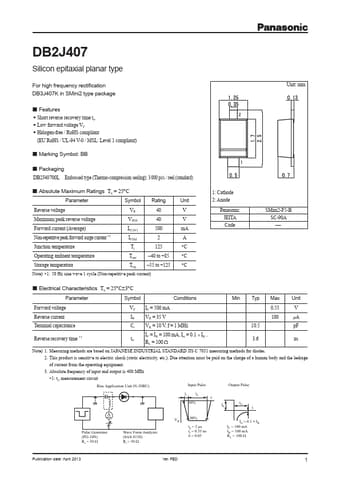

DB2J407 Datasheet Preview — Preview of DB2J407 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DB2J407
Manufacturer	Panasonic
File Size	421.97 KB
Description	Silicon epitaxial planar type
Datasheet	DB2J407-Panasonic.pdf

DB2J407 Product details

Features

Short reverse recovery time trr.
Low forward voltage VF.
Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL: Level 1 compliant).
Marking Symbol: BB.
Packaging DB2J40700L Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard).
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Reverse voltage VR 40 Maximum peak reverse voltage VRM 40 Forward current (Average) IF(AV) 500 Non-repetitive peak forward surge current.
