DB2X41100L Schottky Barrier Diode

DB2X41100L Description

Doc No.TT4-EA-13670 Revision.3 Product Standards Schottky Barrier Diode DB2X41100L DB2X41100L Silicon epitaxial planar type For rectification DB2J.

DB2X41100L Features

* Low forward voltage and low reverse leakage current
* Short reverse recovery time trr
* Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant) Unit: mm 1.6 2 0.13
* Marking Symbol: 4R
* Packaging Embossed type (Thermo-compression sealing) : 3 000 pcs / r

DB2X41100L Applications

* (such as office equipment, communications equipment, measuring instruments and household appliances), or for specific applications as expressly stated in this book. Consult our sales staff in advance for information on the following applications:
* Special applications (such as for airplanes

📥 Download Datasheet

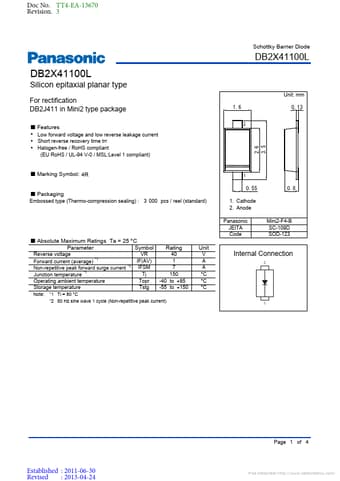

Preview of DB2X41100L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DB2X41100L
Manufacturer
Panasonic
File Size
341.57 KB
Datasheet
DB2X41100L_Panasonic.pdf
Description
Schottky Barrier Diode
