DB2X41500L - Schottky Barrier Diode

Panasonic

📥 Download Datasheet

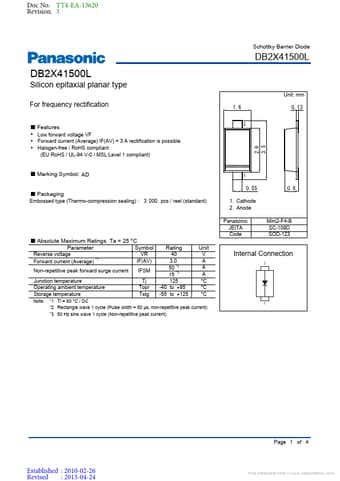

DB2X41500L Datasheet Preview — Preview of DB2X41500L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DB2X41500L
Manufacturer	Panasonic
File Size	341.08 KB
Description	Schottky Barrier Diode
Datasheet	DB2X41500L_Panasonic.pdf

DB2X41500L Product details

Features

s.
Low forward voltage VF.
Forward current (Average) IF(AV) = 3 A rectification is possible.
Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL:Level 1 compliant) 1.6 2 0.13.
Marking Symbol: AD.
Packaging Embossed type (Thermo-compression sealing) : 3 000 pcs / reel (standard) 1 0.55 1. Cathode 2. Anode Panasonic JEITA Code 2.6 3.5 0.8.
Absolute Maximum Ratings Ta = 25 C Parameter Symbol Reverse voltage Forward current (Average).
1 Mini2-F4-B SC-.
