DB2X415 - Silicon epitaxial planar type

Panasonic

📥 Download Datasheet

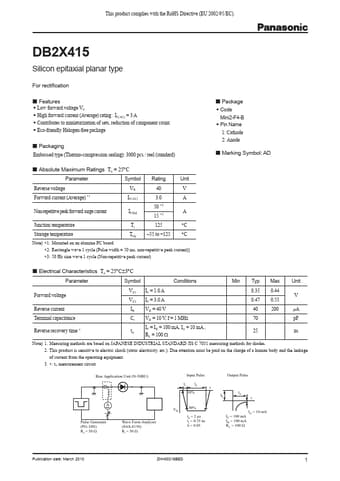

DB2X415 Datasheet Preview — Preview of DB2X415 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DB2X415
Manufacturer	Panasonic
File Size	379.48 KB
Description	Silicon epitaxial planar type
Datasheet	DB2X415-Panasonic.pdf

DB2X415 Product details

Features

Low forward voltage VF.
High forward current (Average) rating : IF(AV) = 3 A.
Contributes to miniaturization of sets, reduction of component count.
Eco-friendly Halogen-free package.
Packaging Embossed type (Thermo-compression sealing): 3000 pcs / reel (standard).
Package.
Code Mini2-F4-B.
Pin Name 1: Cathode 2: Anode.
Marking Symbol: AD.
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Reverse volt.
