HG2-AC100V-F, HG2-AC24V-F Datasheet - Panasonic

HG2-AC100V-F, HG2-AC24V-F, RELAYS

HG Relay for control panel of HG RELAYS20A (2c/3c/4c) RoHS compliant .

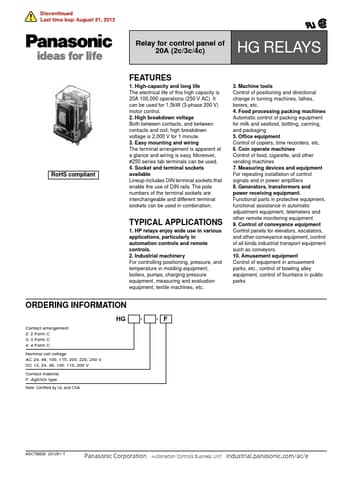

datasheet Preview Page 1 from Datasheet4u.com

HG2-AC24V-F-Panasonic.pdf

HG2-AC100V-F Datasheet Preview — This datasheet PDF includes multiple part numbers: HG2-AC100V-F, HG2-AC24V-F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HG2-AC100V-F, HG2-AC24V-F

Manufacturer:

Panasonic

File Size:

127.92 KB

Description:

RELAYS

Note:

This datasheet PDF includes multiple part numbers: HG2-AC100V-F, HG2-AC24V-F.
Please refer to the document for exact specifications by model.

Features

* 1. High-capacity and long life The electrical life of this high capacity is 20A 100,000 operations (250 V AC). It can be used for 1.5kW (3-phase 200 V) motor control. 2. High breakdown voltage Both between contacts, and between contacts and coil, high breakdown voltage is 2,000 V for 1 minute. 3. Ea

Applications

* 1. HP relays enjoy wide use in various applications, particularly in automation controls and remote controls. 2. Industrial machinery For controlling positioning, pressure, and temperature in molding equipment, boilers, pumps, charging pressure equipment, measuring and evaluation equipment, textile
