MIP2F10MS, MIP2F30MS, High-Performance IPD

Featuring built-in protection circuits necessary for compact power source charger circuitry, while also conserving power during standby! * Ove.

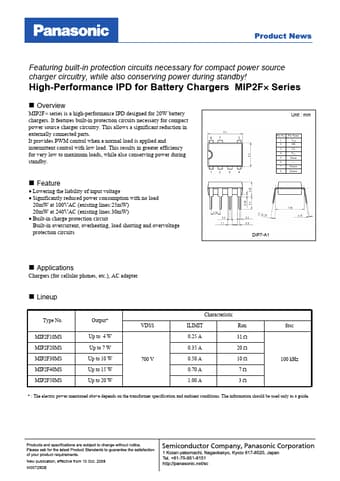

datasheet Preview Page 1 from Datasheet4u.com

MIP2F30MS_Panasonic.pdf

MIP2F10MS Datasheet Preview — This datasheet PDF includes multiple part numbers: MIP2F10MS, MIP2F30MS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MIP2F10MS, MIP2F30MS

Manufacturer:

Panasonic

File Size:

382.44 KB

Description:

High-Performance IPD

Note:

This datasheet PDF includes multiple part numbers: MIP2F10MS, MIP2F30MS.
Please refer to the document for exact specifications by model.

Features

* built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maxim

Applications

* Chargers (for cellular phones, etc. ), AC adapter
* Lineup Characteristic Type No. MIP2F10MS MIP2F20MS MIP2F30MS MIP2F40MS MIP2F50MS Output
* Up to 4 W Up to 7 W Up to 10 W Up to 15 W Up to 20 W 700 V VDSS ILIMIT 0.25 A 0.35 A 0.50 A 0.70 A 1.00 A Ron 31 Ω 20 Ω 10 Ω 7Ω 3Ω 100 kHz fosc
