PE4244

SPDT UltraCMOS RF Switch

PE4244 Features

* Single +3.0-volt Power Supply Low Insertion loss: 0.60 dB up to 2.0 GHz High isolation of 39 dB at 1.0 GHz, 29 dB at 2.0 GHz Typical 1 dB compression of +27 dBm Single-pin CMOS logic control Packaged in 8-lead MSOP Figure 2. Package Type

PE4244 General Description

The PE4244 UltraCMOS™ RF Switch is designed to cover a broad range of applications from DC to 3.0 GHz. This switch integrates on-board CMOS control logic with a low voltage CMOS compatible control input. Using a +3-volt nominal power supply voltage, a 1 dB compression point of +27 dBm can be achieve.

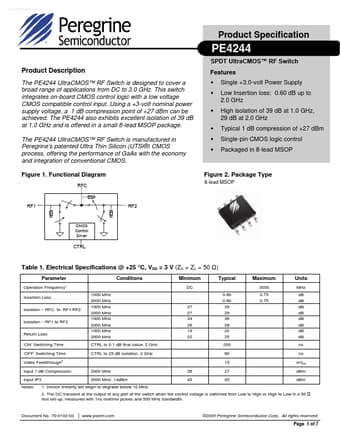

PE4244 Datasheet (276.54 KB)

Preview of PE4244 PDF

Datasheet Details

Part number:

PE4244

Manufacturer:

Peregrine Semiconductor

File Size:

276.54 KB

Description:

Spdt ultracmos rf switch.
