PE42443, SP4T RF Switch

PE42443 Document Category: Product Specification UltraCMOS SP4T RF Switch, 1.8 GHz *5 GHz .
The PE42443 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 1.

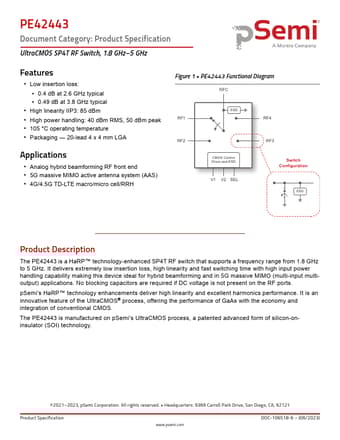

datasheet Preview Page 1 from Datasheet4u.com

PE42443-PeregrineSemiconductor.pdf

PE42443 Datasheet Preview — Preview of PE42443 PDF

Datasheet Details

Part number:

PE42443

Manufacturer:

Peregrine Semiconductor

File Size:

495.13 KB

Description:

SP4T RF Switch

Features

* Low insertion loss: ▪ 0.4 dB at 2.6 GHz typical ▪ 0.49 dB at 3.8 GHz typical
* High linearity IIP3: 85 dBm
* High power handling: 40 dBm RMS, 50 dBm peak
* 105 °C operating temperature
* Packaging

Applications

* Analog hybrid beamforming RF front end
* 5G massive MIMO active antenna system (AAS)
* 4G/4.5G TD-LTE macro/micro cell/RRH Figure 1
* PE42443 Functional Diagram RFC ESD RF1 RF4 RF2 CMOS Control Driver and ESD V1 V2 SEL RF3 Switch Configuration ESD Product De
