PE42440 - RF Switch

Product Overview

Peregrine Semiconductor

📥 Download Datasheet

PE42440 RF Switch by Peregrine Semiconductor - Datasheet Preview — Datasheet preview – PE42440

Datasheet Details

Part number	PE42440
Manufacturer	Peregrine Semiconductor
File Size	609.83 KB
Description	RF Switch
Datasheet	PE42440 Datasheet
Additional preview pages of the PE42440 datasheet.

Product details

Description

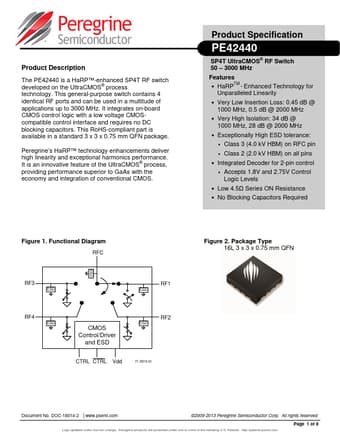

The PE42440 is a HaRP™-enhanced SP4T RF switch developed on the UltraCMOS® process technology.

Features

HaRPTM - Enhanced Technology for Unparalleled Linearity.
Very Low Insertion Loss: 0.45 dB @ 1000 MHz, 0.5 dB @ 2000 MHz.
Very High Isolation: 34 dB @ 1000 MHz, 28 dB @ 2000 MHz.
Exceptionally High ESD tolerance:.
Class 3 (4.0 kV HBM) on RFC pin.
Class 2 (2.0 kV HBM) on all pins.
Integrated Decoder for 2-pin control.
Accepts 1.8V and 2.75V Control Logic Levels.
Low 4.5Ω Series ON Resistance.
No Blocking Cap.
