PI3A3159TEX 3.0V/ SOTiny 0.4 SPDT Analog Switch

The PI3A3159 is a, fast single-pole double-throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Specified over a wide operating power supply voltage range, +1.5V to +3.6V, the PI3A3159 has an On-Resistance of 0.4Ω at 3.0V. Control input, IN, tolerates input driv.

PI3A3159TEX Features

* CMOS Technology for Bus and Analog Applications

* Low ON-Resistance: 0.4Ω (+2.7V Supply)

* Wide VCC Range: +1.5V to +3.6V

* Low Power Consumption : 5µW

* Rail-to-Rail switching throughout Signal Range

* Fast Switching Speed: 20ns max. at 3.3V

PI3A3159TEX Datasheet (506.28 KB)

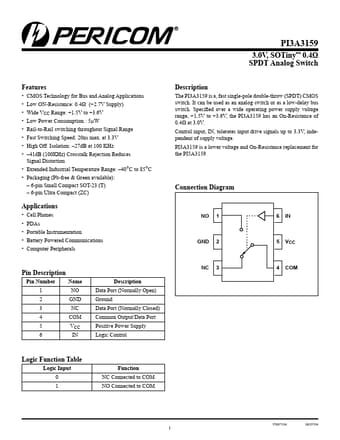

PI3A3159TEX Datasheet Preview — Preview of PI3A3159TEX PDF

Datasheet Details

Part number:

PI3A3159TEX

Manufacturer:

Pericom Semiconductor Corporation

File Size:

506.28 KB

Description:

3.0v/ sotiny 0.4 spdt analog switch.
