PI3PCIE3412

2:1 Mux/DeMux Switch

PI3PCIE3412 Features

* 4 Differential Channel, 2:1 Mux/DeMux

* PCI Express® 3.0 Performance, 8.0Gbps

* Bi-directional Operation

* Low Bit-to-Bit Skew, 10ps max

* Low channel-to-channel skew, 20ps max

* Low Crosstalk: -35dB@4 GHz

* High Off Isolation: -22dB@

PI3PCIE3412 General Description

Pericom Semiconductor’s PI3PCIE3412 is an 8 to 4 differential channel multiplexer/demultiplexer switch. This solution can switch 2 full PCI Express® 3.0, lanes to one of two locations. Using a unique design technique, Pericom has been able to minimize the impedance of the switch such that the atte.

PI3PCIE3412 Datasheet (1.64 MB)

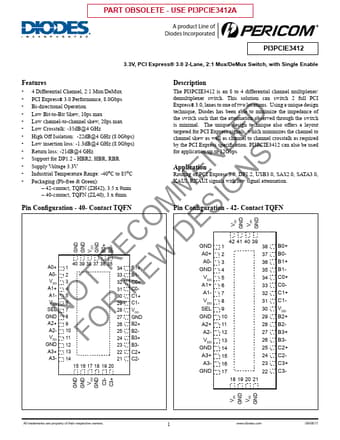

Preview of PI3PCIE3412 PDF

Datasheet Details

Part number:

PI3PCIE3412

Manufacturer:

Pericom Semiconductor Corporation

File Size:

1.64 MB

Description:

2:1 mux/demux switch.
