PI3PCIE3442

3.0 2-Lane Exchange Switch

PI3PCIE3442 Features

* ÎÎ8 Differential Channel (2-lane) Exchange ÎÎPCI Express® 3.0 performance, 8.0 Gbps ÎÎBi-directional operation ÎÎLow Bit-to-Bit Skew: 10ps (between ± signals) ÎÎLow Crosstalk: -29dB @ 2.5GHz (5Gbps) -20dB @ 4.0GHz (8Gbps) ÎÎLow Insertion Loss: -1.1dB @ 2.5GHz (5Gbps) -1.45dB @ 4.0GHz

PI3PCIE3442 General Description

Pericom semiconductor’s PI3PCIE3442 is a differential exchange switch featuring pass-through pinout. It supports two full PCI Express® lanes operating at 8.0Gbps PCIe® 3.0 performance. With the select control input low, Port A connects to Port B, and Port C connects to port D for an 8-channel differ.

PI3PCIE3442 Datasheet (759.78 KB)

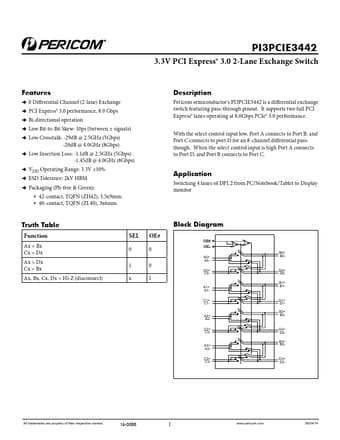

Preview of PI3PCIE3442 PDF

Datasheet Details

Part number:

PI3PCIE3442

Manufacturer:

Pericom Semiconductor Corporation

File Size:

759.78 KB

Description:

3.0 2-lane exchange switch.
