PI3PCIE3422

Differential Mux/Demux

PI3PCIE3422 Features

* ÎÎ8 Differential Channel SPST switch with Mux/DeMux option ÎÎPCIe® 3.0 performance ÎÎBi-directional operation ÎÎLow Bit-to-Bit Skew: 10ps (between ± signals) ÎÎLow Crosstalk: -50dB @ 4.0GHz (8Gbps) ÎÎLow Off Isolation: -21dB @4GHz ÎÎLow Insertion Loss: -1.8dB @ 4.0GHz (8Gbps) ÎÎReturn Loss: -15dB @4

PI3PCIE3422 General Description

Pericom semiconductor’s PI3PCIE3422 is an 8 to 4 channel differential multiplexer/demultiplexer featuring 8-channel passthrough. It supports two full PCIe® lanes at 8.0Gbps PCIe® 3.0 performance. With the select control input low Port A connects to Port B, and Port C connects to port D for an 8-chan.

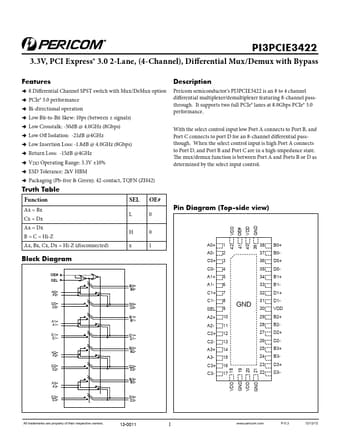

PI3PCIE3422 Datasheet (555.06 KB)

Preview of PI3PCIE3422 PDF

Datasheet Details

Part number:

PI3PCIE3422

Manufacturer:

Pericom Semiconductor Corporation

File Size:

555.06 KB

Description:

Differential mux/demux.
