PI5C3305 - 2-Bit Bus Switch

PI5C3305 Description

.
Pericom Semiconductor’s PI5C3305 is a 2-bit bus switch designed with two individual 5Ω switches with fast individual enables.

PI5C3305 Features

* Near-Zero propagation delay
* 5Ω switches connect inputs to outputs
* Direct bus connection when switches are ON
* Ultra Low Quiescent Power (0.2μA typical)

PI5C3305 Applications

* Packaging (Pb-free & Green available):
* 8-pin 173-mil wide plastic TSSOP (L)

📥 Download Datasheet

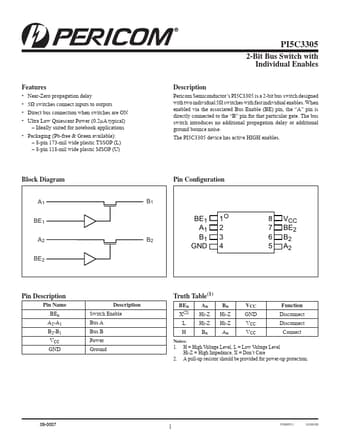

Preview of PI5C3305 PDF
datasheet Preview Page 2 datasheet Preview Page 3
