PI5C3309 Datasheet - Pericom Semiconductor

PI5C3309 3:1 Mux/Demux Bus Switch

Pericom Semiconductor’s PI5C series of logic circuits are produced using the Company’s advanced submicron CMOS technology, achieving industry leading performance. PI5C3309 is a 3:1 Multiplexer/Demultiplexer with 3-State outputs. Inputs can be connected to outputs with low ON resistance (5-ohm) with .

PI5C3309 Features

* Near zero propagation delay

* 5-Ohm switches connect inputs to outputs

* Direct bus connection when switches are ON

* Ultra Low Quiescent Power (0.2µA Typical)

* Ideally suited for notebook applications

* Packages available:

* 8 pin 173 mil w

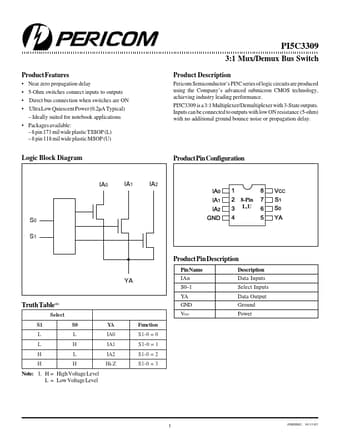

PI5C3309-PericomSemiconductor.pdf
