PI5C3384 - 2-Port Bus Switch

PI5C3384 Description

.
Pericom Semiconductor’s PI5C3384 and PI5C3384C are 10-bit, 2-port bus switches designed with a low On-Resistance allowing inputs to be connected dire.

PI5C3384 Features

* Near-Zero propagation delay
* 5Ω switches connect inputs to outputs
* Direct bus connection when switches are ON
* Ultra-low quiescent power (0.2μA typical)

PI5C3384 Applications

* Packaging (Pb-free & Green Available):
* 24-pin 150-mil wide plastic QSOP (Q)
* 24-pin 300-mil wide plastic SOIC (S)

📥 Download Datasheet

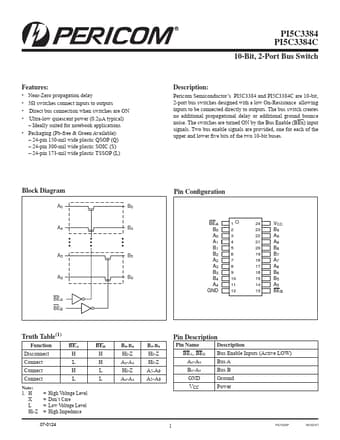

Preview of PI5C3384 PDF
datasheet Preview Page 2 datasheet Preview Page 3
