PI5C3384C 2-Port Bus Switch

Pericom Semiconductor’s PI5C3384 and PI5C3384C are 10-bit, 2-port bus switches designed with a low On-Resistance allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the Bus Ena.

PI5C3384C Features

* Near-Zero propagation delay

* 5Ω switches connect inputs to outputs

* Direct bus connection when switches are ON

* Ultra-low quiescent power (0.2μA typical)

* Ideally suited for notebook applications

* Packaging (Pb-free & Green Available):

PI5C3384-PericomSemiconductor.pdf

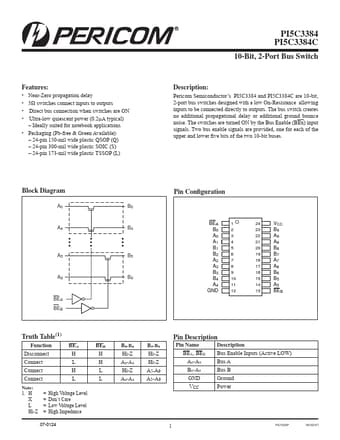

PI5C3384C Datasheet Preview — This datasheet PDF includes multiple part numbers: PI5C3384C, PI5C3384. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PI5C3384C, PI5C3384

Manufacturer:

Pericom Semiconductor

File Size:

402.29 KB

Description:

2-port bus switch.

Note:

This datasheet PDF includes multiple part numbers: PI5C3384C, PI5C3384.
Please refer to the document for exact specifications by model.
