PI6LC4820 Datasheet, Generator, Pericom Semiconductor

PI6LC4820 Features

• Generator ÎÎ3.3V supply voltage ÎÎCrystal input: 25 MHz ÎÎDifferential input: 25MHz, 156.25 MHz ÎÎOutput frequencies of 312.5, 156.25, 125MHz supported ÎÎ9 LVPECL or LVDS bank selectable outputs

PDF File Details

Part number:

PI6LC4820

Manufacturer:

Pericom Semiconductor

File Size:

734.94kb

Download:

📄 Datasheet

Description:

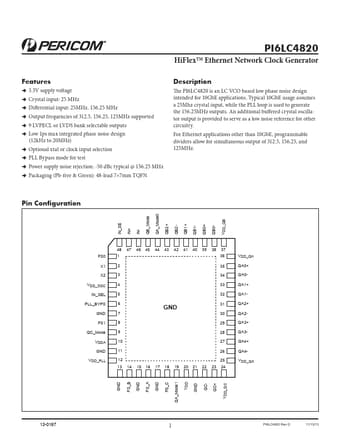

Ethernet network clock generator. The PI6LC4820 is an LC VCO based low phase noise design intended for 10GbE applications. Typical 10GbE usage assumes a 25Mhz crystal

PI6LC4820 Application

• Applications Typical 10GbE usage assumes a 25Mhz crystal input, while the PLL loop is used to generate the 156.25MHz outputs. An additional buffere
