PI6LC48C51 Datasheet, Generator, Pericom Semiconductor

PI6LC48C51 Features

  • Generator ÎÎSingle LVCMOS output ÎÎSupports 70MHz - 170MHz output frequency range ÎÎRMS phase jitter @ 155.52MHz, (1.875MHz
      – 20MHz): 0.2ps (typical) ÎÎFull 3.3V or 2.5V supply mo

PDF File Details

Part number:

PI6LC48C51

Manufacturer:

Pericom Semiconductor

File Size:

609.48kb

Download:

📄 Datasheet

Description:

Ethernet / sata lvcmos clock generator. The PI6LC48C51 is a single LVCMOS output synthesizer optimized to generate Ethernet, SONET/SDH, or SATA reference clock frequencies a

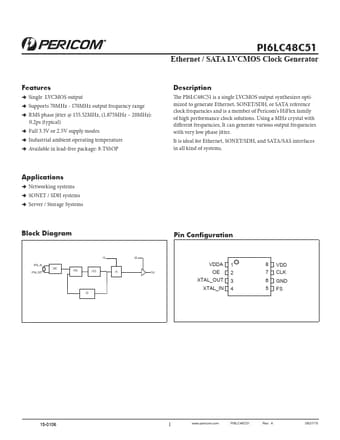

Datasheet Preview: PI6LC48C51 📥 Download PDF (609.48kb)
Page 2 of PI6LC48C51 Page 3 of PI6LC48C51

PI6LC48C51 Application

  • Applications ÎÎNetworking systems ÎÎSONET / SDH systems ÎÎServer / Storage Systems Block Diagram Pin Configuration XTAL_IN XTAL_OUT OSC FS PFD
