PI6LC4840 Datasheet, Synthesizer, Pericom Semiconductor

PI6LC4840 Features

  • Synthesizer ÎÎ3.3V supply voltage ± 5% ÎÎThree banks of outputs: àà Bank A: 3 25/50MHz pin selectable LVCMOS outputs àà Bank B: 3 125MHz LVCMOS outputs àà Bank C: 3 125MHz LVDS outputs ÎÎ1 25MHz LV

PDF File Details

Part number:

PI6LC4840

Manufacturer:

Pericom Semiconductor

File Size:

554.77kb

Download:

📄 Datasheet

Description:

Crystal to lvds/lvcmos frequency synthesizer. The PI6LC4840 is an LC VCO based low phase noise design intended for the most demanding Ethernet applications. Common Ethernet freque

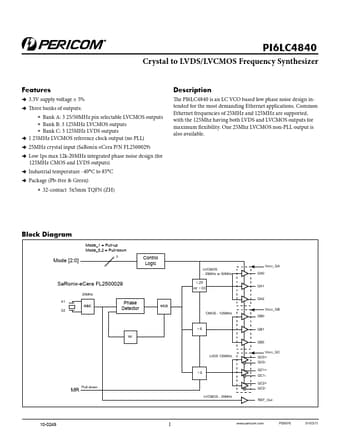

Datasheet Preview: PI6LC4840 📥 Download PDF (554.77kb)
Page 2 of PI6LC4840 Page 3 of PI6LC4840

PI6LC4840 Application

  • Applications Common Ethernet frequencies of 25MHz and 125MHz are supported, with the 125Mhz having both LVDS and LVCMOS outputs for maximum flexibi
