BUK138-50DL - Logic level TOPFET

Datasheet Summary

Description

Monolithic temperature and overload protected logic level power MOSFET in TOPFET2 technology assembled in a 3 pin surface mount plastic package.

in automotive systems and other applications.

Features

TrenchMOS output stage Current limiting Overload protection Overtemperature protection Protection latched reset by input 5 V logic compatible input level Control of output stage and supply of overload protection circuits derived from input Low operating input current permits direct drive by micro-controller ESD protection on all pins Overvoltage clamping for turn off of inductive loads.

Datasheet Details

Part number	BUK138-50DL
Manufacturer	Philips
File Size	37.43 KB
Description	Logic level TOPFET
Datasheet	BUK138-50DL Datasheet
Additional preview pages of the BUK138-50DL datasheet.

📁 Similar Datasheet

BUK130-50DL - Power MOSFET (NXP)

BUK139-50DL - TOPFET (nexperia)

BUK100-50DL - PowerMOS transistor Logic level TOPFET (NXP)

BUK100-50GL - PowerMOS transistor Logic level TOPFET (NXP)

BUK100-50GS - PowerMOS transistor TOPFET (NXP)

BUK101-50DL - PowerMOS transistor Logic level TOPFET (NXP)

BUK101-50GL - PowerMOS transistor Logic level TOPFET (NXP)

BUK101-50GS - PowerMOS transistor TOPFET (NXP)

BUK102-50DL - PowerMOS transistor Logic level TOPFET (NXP)

BUK102-50GL - PowerMOS transistor Logic level TOPFET (NXP)

Full PDF Text Transcription

Click to expand full text

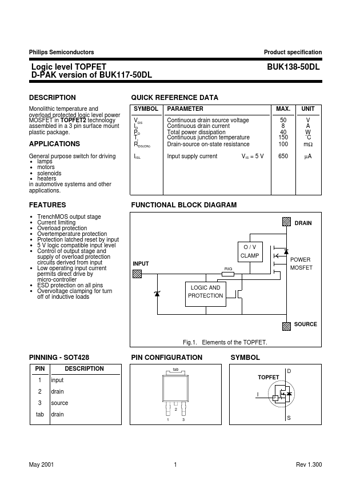

Philips Semiconductors Logic level TOPFET D-PAK version of BUK117-50DL Product specification BUK138-50DL DESCRIPTION Monolithic temperature and overload protected logic level power MOSFET in TOPFET2 technology assembled in a 3 pin surface mount plastic package. APPLICATIONS General purpose switch for driving lamps motors solenoids heaters in automotive systems and other applications.
