BUK100-50GS - PowerMOS transistor TOPFET

Datasheet Summary

Description

Monolithic temperature and overload protected power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.

Features

  • Vertical power DMOS output stage Low on-state resistance Overload protection against over temperature Overload protection against short circuit load Latched overload protection reset by input 10 V input level Low threshold voltage also allows 5 V control Control of power MOSFET and supply of overload protection circuits derived from input ESD protection on input pin Overvoltage clamping for turn off of inductive loads.

📥 Download Datasheet

Datasheet preview – BUK100-50GS

Datasheet Details

Part number BUK100-50GS
Manufacturer NXP
File Size 112.01 KB
Description PowerMOS transistor TOPFET
Datasheet download datasheet BUK100-50GS Datasheet
Additional preview pages of the BUK100-50GS datasheet.

📁 Similar Datasheet

  • BUK118-50DL - Monolithic temperature and overload protected logic level power MOSFET (NXP Semiconductors)
  • BUK127-50GT - PowerMOS transistor (Philips)
  • BUK138-50DL - Logic level TOPFET (Philips)
  • BUK139-50DL - TOPFET (nexperia)
  • BUK208-50Y - (BUK213-50Y / BUK208-50Y) Single channel high-side TOPFET (NXP Semiconductors)
  • BUK210-50Y - PowerMOS transistor TOPFET high side switch (NXP Semiconductors)
  • BUK213-50Y - (BUK213-50Y / BUK208-50Y) Single channel high-side TOPFET (NXP Semiconductors)
  • BUK214-50Y - TOPFET high side switch (NXP Semiconductors)
  • BUK217-50YT - TOPFET high side switch SMD version (NXP Semiconductors)
  • BUK220-50Y - TOPFET high side switch (NXP Semiconductors)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

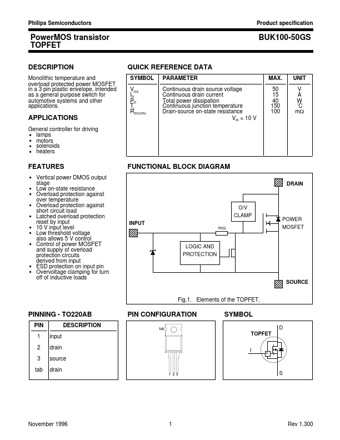

Philips Semiconductors Product specification PowerMOS transistor TOPFET DESCRIPTION Monolithic temperature and overload protected power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications. BUK100-50GS QUICK REFERENCE DATA SYMBOL VDS ID PD Tj RDS(ON) PARAMETER Continuous drain source voltage Continuous drain current Total power dissipation Continuous junction temperature Drain-source on-state resistance VIS = 10 V MAX.
