BUK100-50DL - PowerMOS transistor Logic level TOPFET

BUK100-50DL Description

Philips Semiconductors Product specification PowerMOS transistor Logic level TOPFET .
Monolithic temperature and overload protected logic level power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotiv.

BUK100-50DL Features

* Vertical power DMOS output stage Low on-state resistance Overload protection against over temperature Overload protection against short circuit load Latched overload protection reset by input 5 V logic compatible input level Control of power MOSFET and supply of overload protection circuits derived

BUK100-50DL Applications

* BUK100-50DL QUICK REFERENCE DATA SYMBOL VDS ID PD Tj RDS(ON) IISL PARAMETER Continuous drain source voltage Continuous drain current Total power dissipation Continuous junction temperature Drain-source on-state resistance Input supply current VIS = 5 V MAX. 50 13.5 40 150 125 650 UNIT V A W ˚C mΩ

📥 Download Datasheet

Preview of BUK100-50DL PDF

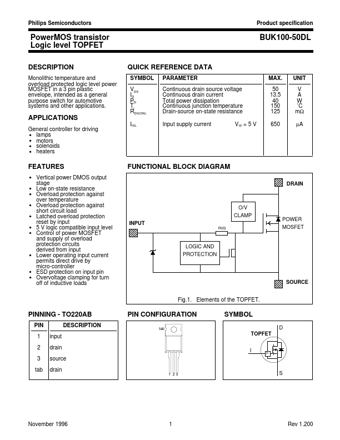

datasheet Preview Page 2 datasheet Preview Page 3
