BUK101-50DL - PowerMOS transistor Logic level TOPFET

Datasheet Summary

Description

Monolithic temperature and overload protected logic level power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.

Features

  • Vertical power DMOS output stage Low on-state resistance Overload protection against over temperature Overload protection against short circuit load Latched overload protection reset by input 5 V logic compatible input level Control of power MOSFET and supply of overload protection circuits derived from input Lower operating input current permits direct drive by micro-controller ESD protection on input pin Overvoltage clamping for turn off of inductive loads.

📥 Download Datasheet

Datasheet preview – BUK101-50DL

Datasheet Details

Part number BUK101-50DL
Manufacturer NXP
File Size 89.59 KB
Description PowerMOS transistor Logic level TOPFET
Datasheet download datasheet BUK101-50DL Datasheet
Additional preview pages of the BUK101-50DL datasheet.

📁 Similar Datasheet

  • BUK118-50DL - Monolithic temperature and overload protected logic level power MOSFET (NXP Semiconductors)
  • BUK127-50GT - PowerMOS transistor (Philips)
  • BUK138-50DL - Logic level TOPFET (Philips)
  • BUK139-50DL - TOPFET (nexperia)
  • BUK208-50Y - (BUK213-50Y / BUK208-50Y) Single channel high-side TOPFET (NXP Semiconductors)
  • BUK210-50Y - PowerMOS transistor TOPFET high side switch (NXP Semiconductors)
  • BUK213-50Y - (BUK213-50Y / BUK208-50Y) Single channel high-side TOPFET (NXP Semiconductors)
  • BUK214-50Y - TOPFET high side switch (NXP Semiconductors)
  • BUK217-50YT - TOPFET high side switch SMD version (NXP Semiconductors)
  • BUK220-50Y - TOPFET high side switch (NXP Semiconductors)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

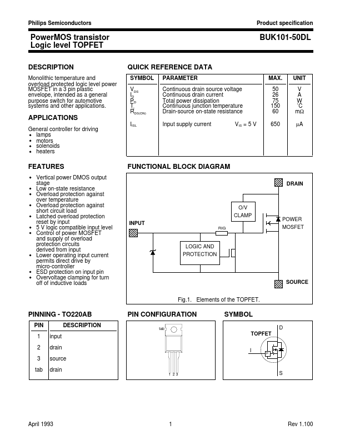

Philips Semiconductors Product specification PowerMOS transistor Logic level TOPFET DESCRIPTION Monolithic temperature and overload protected logic level power MOSFET in a 3 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications. BUK101-50DL QUICK REFERENCE DATA SYMBOL VDS ID PD Tj RDS(ON) IISL PARAMETER Continuous drain source voltage Continuous drain current Total power dissipation Continuous junction temperature Drain-source on-state resistance Input supply current VIS = 5 V MAX.
