UBA2035TS Datasheet - Philips

UBA2035TS, HF Full-bridge control IC

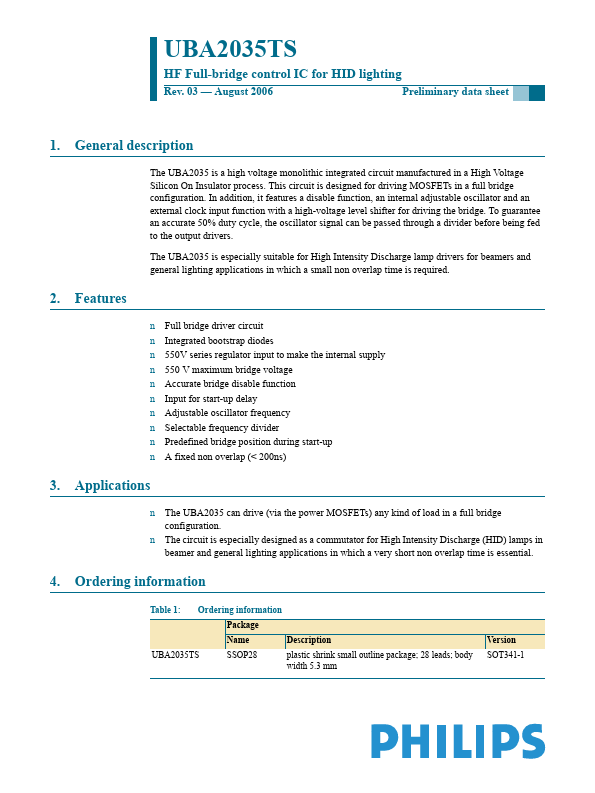

UBA2035TS HF Full-bridge control IC for HID lighting Rev.03 * August 2006 Preliminary data sheet 1.General .
The UBA2035 is a high voltage monolithic integrated circuit manufactured in a High Voltage Silicon On Insulator process.

datasheet Preview Page 1 from Datasheet4u.com

UBA2035TS-Philips.pdf

UBA2035TS Datasheet Preview — Preview of UBA2035TS PDF

Datasheet Details

Part number:

UBA2035TS

Manufacturer:

Philips

File Size:

639.96 KB

Description:

HF Full-bridge control IC

Features

* a disable function, an internal adjustable oscillator and an external clock input function with a high-voltage level shifter for driving the bridge. To guarantee an accurate 50% duty cycle, the oscillator signal can be passed through a divider before being fed to the output drivers. The UBA2035 is e
