UBA2013L, UBA2013 Datasheet - Philips

UBA2013L HB driver IC

The UBA2013/L3 is a high voltage IC intended to drive and control fluorescent lamps. The IC can handle both cold and warm ignition of the lamp. It contains a TON-controlled PFC function, a half bridge controller circuit with level shifter and an internal bootstrap diode to drive an external half bri.

UBA2013L Features

* 2.1 Half bridge

* Suitable for cold and warm ignition Adjustable preheat time Adjustable ignition voltage Integrated bootstrap function Protection for lamp failure and end-of-life

* Adjustable preheat current Singl

UBA2013_Philips.pdf

This datasheet PDF includes multiple part numbers: UBA2013L, UBA2013. Please refer to the document for exact specifications by model.

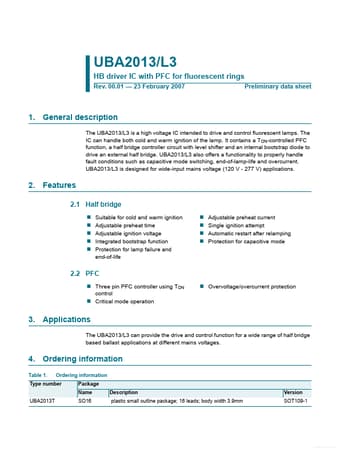

UBA2013L Datasheet Preview Page 2 UBA2013L Datasheet Preview Page 3

Datasheet Details

Part number:

UBA2013L, UBA2013

Manufacturer:

Philips

File Size:

617.12 KB

Description:

Hb driver ic.

Note:

This datasheet PDF includes multiple part numbers: UBA2013L, UBA2013.
Please refer to the document for exact specifications by model.
