UBA2013T

HB driver IC

UBA2013T Features

* 2.1 Half bridge

* Suitable for cold and warm ignition Adjustable preheat time Adjustable ignition voltage Integrated bootstrap function Protection for lamp failure and end-of-life

* Adjustable preheat current Singl

UBA2013T General Description

The UBA2013/L3 is a high voltage IC intended to drive and control fluorescent lamps. The IC can handle both cold and warm ignition of the lamp. It contains a TON-controlled PFC function, a half bridge controller circuit with level shifter and an internal bootstrap diode to drive an external half bri.

UBA2013T Datasheet (617.12 KB)

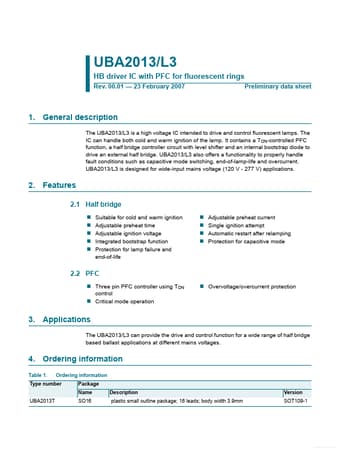

Preview of UBA2013T PDF

Datasheet Details

Part number:

UBA2013T

Manufacturer:

Philips

File Size:

617.12 KB

Description:

Hb driver ic.
