UBA2033 HF full bridge driver

NXP

Description

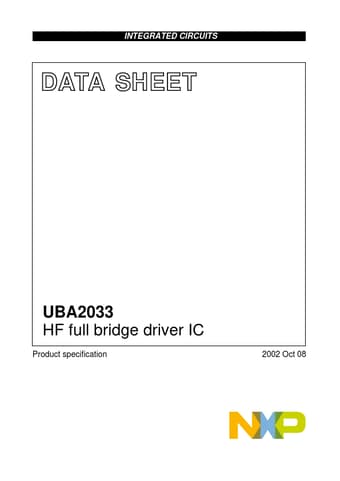

INTEGRATED CIRCUITS DATA SHEET UBA2033 HF full bridge driver IC Product specification 2002 Oct 08 NXP Semiconductors HF full bridge driver IC Prod.
The UBA2033 is a high voltage monolithic integrated circuit made in the EZ-HV SOI process.

📥 Download Datasheet

UBA2033 Datasheet Preview — Preview of UBA2033 PDF

Datasheet Specifications

Part number: UBA2033
Manufacturer: NXP ↗
File Size: 128.38 KB
Datasheet: UBA2033_PhilipsSemiconductors.pdf
Description: HF full bridge driver

Features

* Full bridge driver circuit
* Integrated bootstrap diodes
* Integrated high voltage level shift function
* High voltage input for the internal supply voltage
* 550 V maximum voltage
* Bridge disable function
* Input for start-up delay

Applications

* The UBA2033 can drive (via the MOSFETs) any kind of load in a full bridge configuration
