BB142 - Low-voltage variable capacitance diode

BB142 Description

DISCRETE SEMICONDUCTORS DATA SHEET M3D319 BB142 Low-voltage variable capacitance diode Preliminary speciļ¬cation 1999 May 12 Philips Semiconductors.
The BB142 is a variable capacitance diode, fabricated in planar technology, and encapsulated in the SOD523 (SC-79) ultra small plastic SMD package.

BB142 Features

* Excellent linearity
* Ultra small plastic SMD package
* C4: 2.05 pF; ratio: 2.2

📥 Download Datasheet

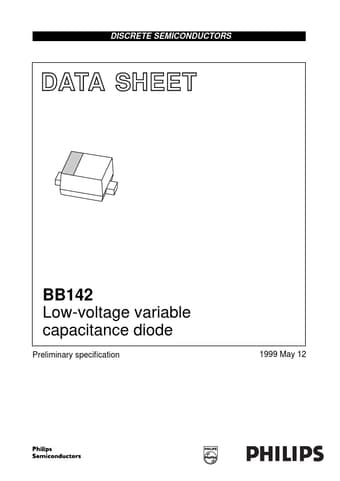

Preview of BB142 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BB142
Manufacturer
Philipss
File Size
44.13 KB
Datasheet
BB142_PhilipsSemiconductors.pdf
Description
Low-voltage variable capacitance diode
