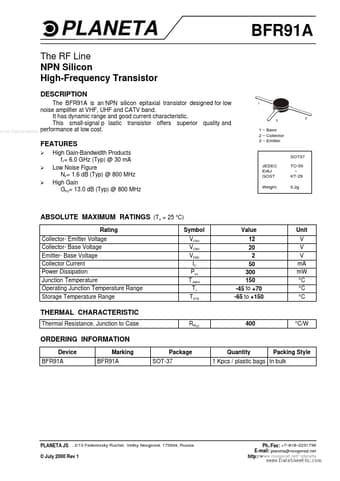

BFR91A Datasheet, Transistor, Planeta

BFR91A Features

• Transistor 1
    – Base 2
    – Collector 3
    – Emitter


  High Gain-Bandwidth Products fT= 6.0 GHz (Typ) @ 30 mA Low Noise Figure NF= 1.6 dB (Typ) @ 8

PDF File Details

Part number:

BFR91A

Manufacturer:

Planeta

File Size:

74.75kb

Download:

📄 Datasheet

Description:

The rf line npn silicon high-frequency transistor. The BFR91A is an NPN silicon epitaxial transistor designed for low noise amplifier at VHF, UHF and CATV band. It has dynamic range an

TAGS

BFR91A

Planeta
