INN2105K, INN2103K - Off-Line CV/CC Flyback Switcher IC

INN2105K Description

INN21x3-21x5 InnoSwitch-CE Family Off-Line CV/CC Flyback Switcher IC with Integrated 650 V MOSFET, Sync-Rect and Feedback with High Output Current (>2.
The InnoSwitch™-CE family of ICs dramatically simplify the development and manufacturing of low-voltage, high current power supplies, particularly tho.

INN2105K Features

* Primary sensed output OVP
* Secondary sensed output overshoot clamp
* Secondary sensed output OCP to zero output voltage
* Hysteretic thermal shutdown
* Input voltage monitor with accurate brown-in/brown-out and overvoltage protection Full Safety an

INN2105K Applications

* High current charger and adapters for mobile devices
* Consumer electronics

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: INN2105K, INN2103K. Please refer to the document for exact specifications by model.

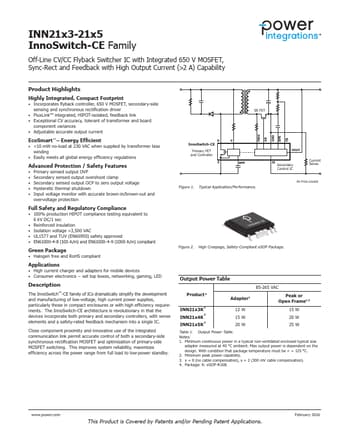

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
INN2105K, INN2103K
Manufacturer
Power Integrations
File Size
1.75 MB
Datasheet
INN2103K-PowerIntegrations.pdf
Description
Off-Line CV/CC Flyback Switcher IC
Note
This datasheet PDF includes multiple part numbers: INN2105K, INN2103K.
Please refer to the document for exact specifications by model.
