INN2124K, INN2103K Datasheet - Power Integrations

INN2124K Off-Line CV/CC Flyback Switcher IC

The InnoSwitch™-CE family of ICs dramatically simplify the development and manufacturing of low-voltage, high current power supplies, particularly those in compact enclosures or with high efficiency requirements. The InnoSwitch-CE architecture is revolutionary in that the devices incorporate both pr.

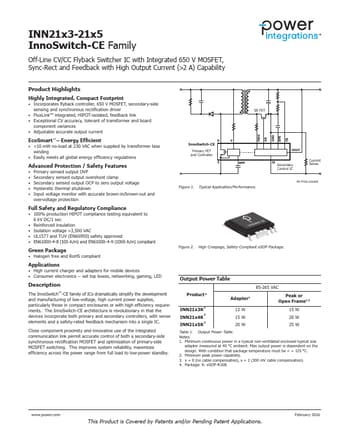

INN21x3-21x5 InnoSwitch-CE Family Off-Line CV/CC Flyback Switcher IC with Integrated 650 V MOSFET, Sync-Rect and Feedback with High Output Current (>2 A) Capability Product Highlights Highly Integrated, Compact Footprint Incorporates flyback controller, 650 V MOSFET, secondary-side sensing and synchronous rectification driver FluxLink™ integrated, HIPOT-isolated, feedback link Exceptional CV accuracy, tolerant of transformer and board component variances

INN2124K Features

* Primary sensed output OVP

* Secondary sensed output overshoot clamp

* Secondary sensed output OCP to zero output voltage

* Hysteretic thermal shutdown

* Input voltage monitor with accurate brown-in/brown-out and overvoltage protection Full Safety an

INN2103K-PowerIntegrations.pdf

INN2124K Datasheet Preview — This datasheet PDF includes multiple part numbers: INN2124K, INN2103K. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

INN2124K, INN2103K

Manufacturer:

Power Integrations

File Size:

1.75 MB

Description:

Off-line cv/cc flyback switcher ic.

Note:

This datasheet PDF includes multiple part numbers: INN2124K, INN2103K.
Please refer to the document for exact specifications by model.
