INN3366C, INN3365C, Digitally Controllable Off-Line CV/CC QR Flyback Switcher

InnoSwitch3-Pro Family Digitally Controllable Off-Line CV/CC QR Flyback Switcher IC with Integrated High-Voltage Switch, Synchronous Rectification an.
The InnoSwitch™3-Pro series family of ICs dramatically simplifies the development and manufacturing of fully programmable, highly efficient power supp.

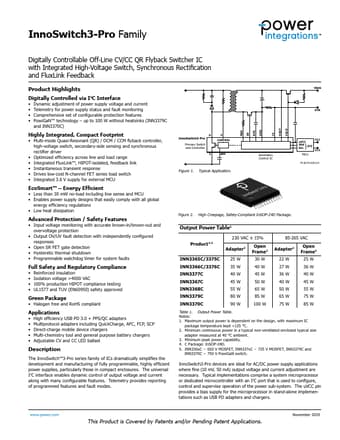

datasheet Preview Page 1 from Datasheet4u.com

INN3365C-PowerIntegrations.pdf

INN3366C Datasheet Preview — This datasheet PDF includes multiple part numbers: INN3366C, INN3365C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

INN3366C, INN3365C

Manufacturer:

Power Integrations

File Size:

3.48 MB

Description:

Digitally Controllable Off-Line CV/CC QR Flyback Switcher

Note:

This datasheet PDF includes multiple part numbers: INN3366C, INN3365C.
Please refer to the document for exact specifications by model.

Features

* PowiGaN™ technology
* up to 100 W without heatsinks (INN3379C and INN3370C) Highly Integrated, Compact Footprint
* Multi-mode Quasi-Resonant (QR) / DCM / CCM flyback controller, high-voltage switch, secondary-side sensing and synchronous rectifier driver
* Optimized

Applications

* High efficiency USB PD 3.0 + PPS/QC adapters
* Multiprotocol adapters including QuickCharge, AFC, FCP, SCP
* Direct-charge mobile device chargers
* Multi-chemistry tool and general purpose battery chargers
