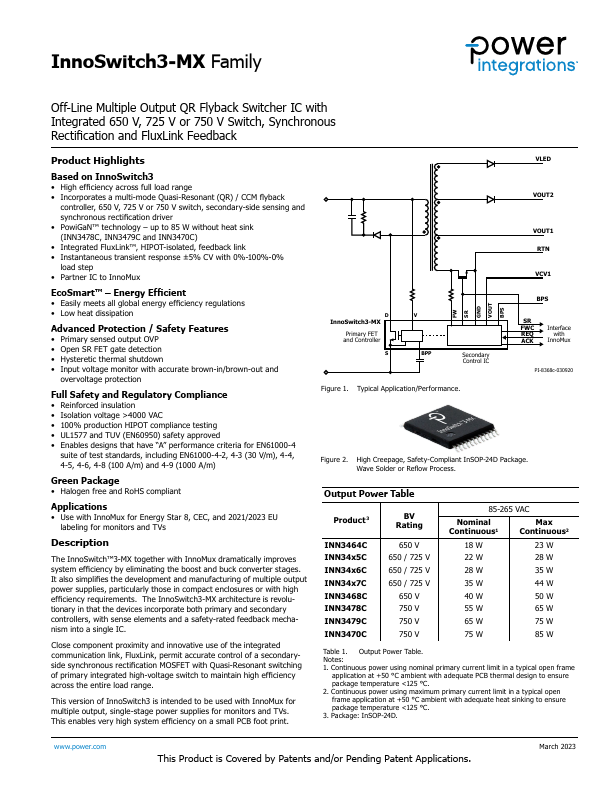

INN3468C, INN3464C Off-Line Multiple Output QR Flyback Switcher

Power Integrations

Description

InnoSwitch3-MX Family Off-Line Multiple Output QR Flyback Switcher IC with Integrated 650 V, 725 V or 750 V Switch, Synchronous Rectification and Flu.
The InnoSwitch™3-MX together with InnoMux dramatically improves system efficiency by eliminating the boost and buck converter stages.

📥 Download Datasheet

INN3468C Datasheet Preview — This datasheet PDF includes multiple part numbers: INN3468C, INN3464C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: INN3468C, INN3464C
Manufacturer: Power Integrations
File Size: 1.18 MB
Datasheet: INN3464C-PowerIntegrations.pdf
Description: Off-Line Multiple Output QR Flyback Switcher
Note: This datasheet PDF includes multiple part numbers: INN3468C, INN3464C.
Please refer to the document for exact specifications by model.

Features

* Primary sensed output OVP
* Open SR FET gate detection
* Hysteretic thermal shutdown
* Input voltage monitor with accurate brown-in/brown-out and overvoltage protection Full Safety and Regulatory Compliance
* Reinforced insulation
* Isolation voltage
