PT6621, PT6620, 6A 12-V Input Integrated Switching Regulator

PT6620 Series 6 A 12-V Input Integrated Switching Regulator SLTS036C - FEBRUARY 1999 - REVISED JUNE 2003 .
The PT6620 series is a line of 12-V input Integrated Switching Regulators (ISRs).

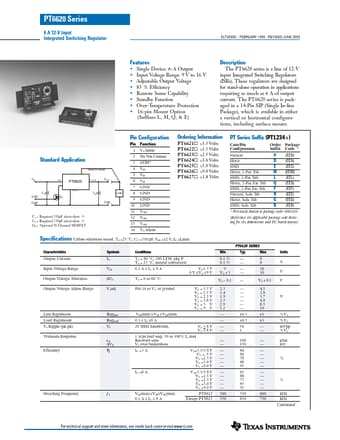

datasheet Preview Page 1 from Datasheet4u.com

PT6620-PowerTrends.pdf

PT6621 Datasheet Preview — This datasheet PDF includes multiple part numbers: PT6621, PT6620. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PT6621, PT6620

Manufacturer:

Power Trends

File Size:

499.17 KB

Description:

6A 12-V Input Integrated Switching Regulator

Note:

This datasheet PDF includes multiple part numbers: PT6621, PT6620.
Please refer to the document for exact specifications by model.

Features

* Single Device: 6-A Output
* Input Voltage Range: 9 V to 16 V
* Adjustable Output Voltage
* 83 % Efficiency
* Remote Sense Capability
* Standby Function
* Over-Temperature Protection
* 16-pin Mount Option (Suffixes L, M, Q, & F) Descr

Applications

* requiring as much as 6 A of output current. The PT6620 series is packaged in a 14-Pin SIP (Single In-line Package), which is available in either a vertical or horizontal configurations, including surface mount. Standard Application VIN + C1 STBY COM 4,5,6 3 Q1 REMOTE SENSE 1 PT6620 11,12,13 V
